  • Image of Hi-Tech Diamond 4 and 5 Inch Trim Saw
  • Image of Hi-Tech Diamond 4 and 5 Inch Trim Saw
  • Image of Hi-Tech Diamond 4 and 5 Inch Trim Saw

Hi-Tech Diamond 4 and 5 Inch Trim Saw

Your Price:
$328.00 $377.00

22-227
Quantity

Added to wishlist
Checkout Secure

Hi-Tech Diamond 4 and 5 Inch Trim Saw

Your Price:
$328.00 $377.00

Currently out of stock

Hi-Tech Diamond 4 and 5 Inch
Trim Saw

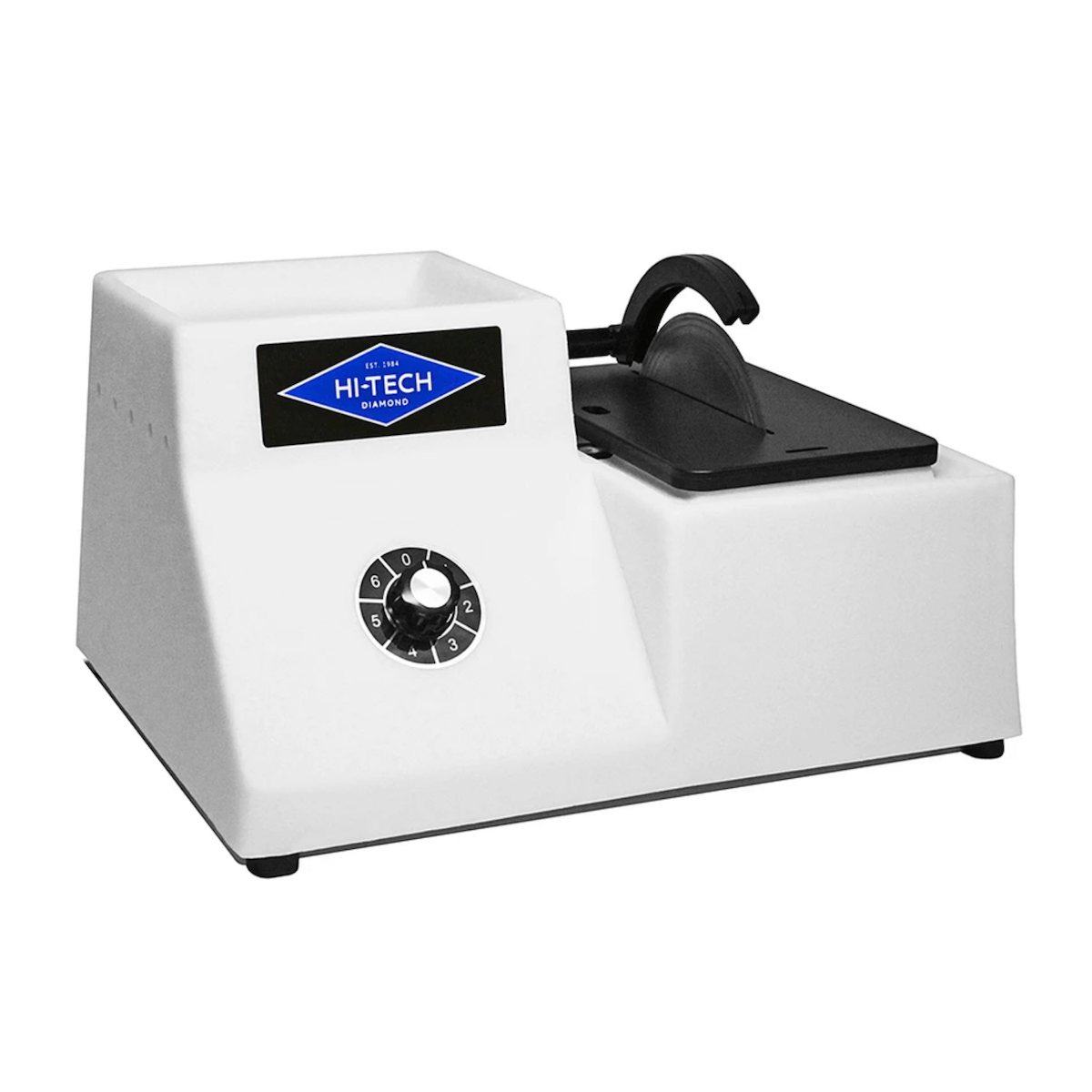

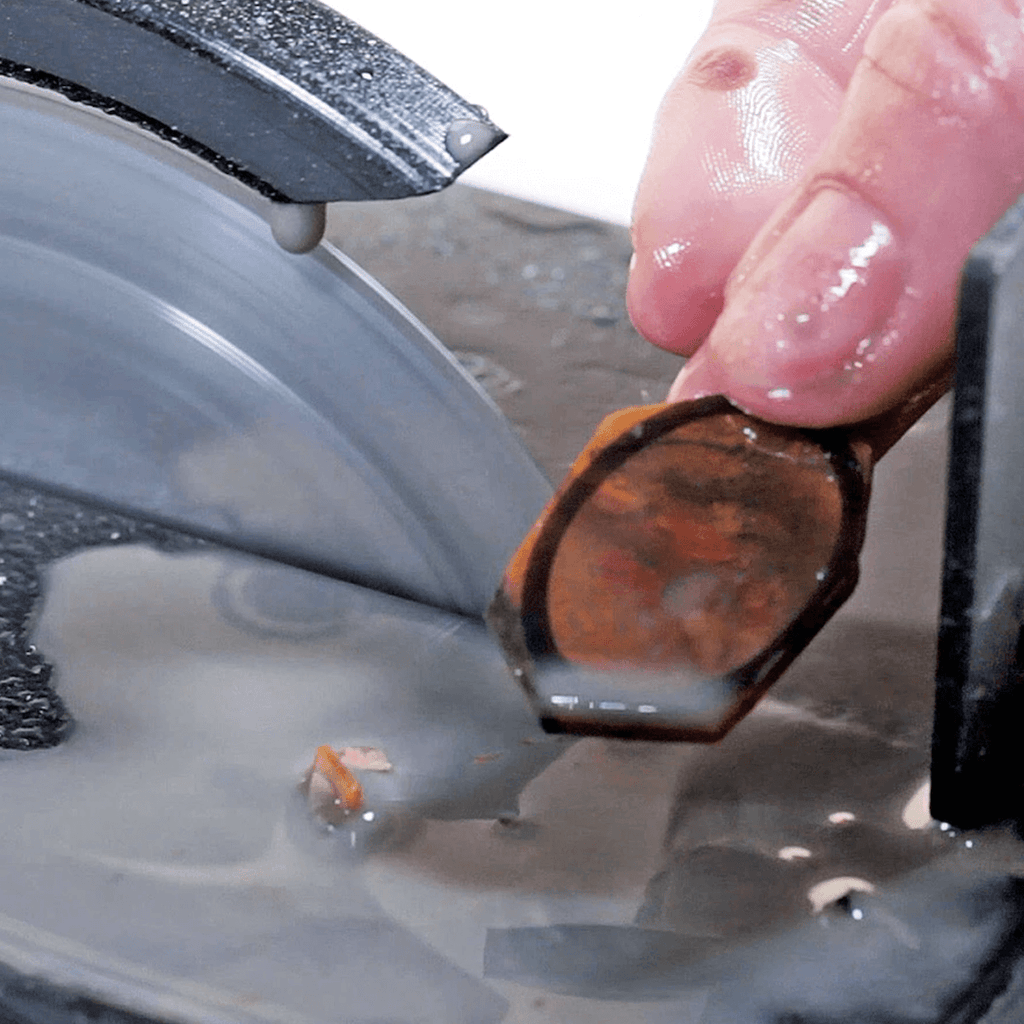

This American-made 4″/5″ trim saw makes the perfect saw for trimming-out cabochon preforms in rocks, minerals and glass, or to cleanly trim smaller faceting material.

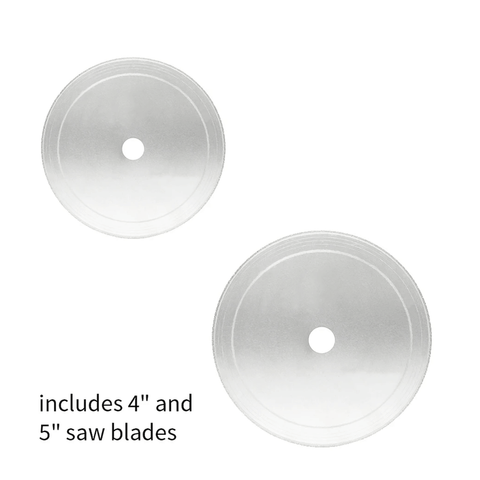

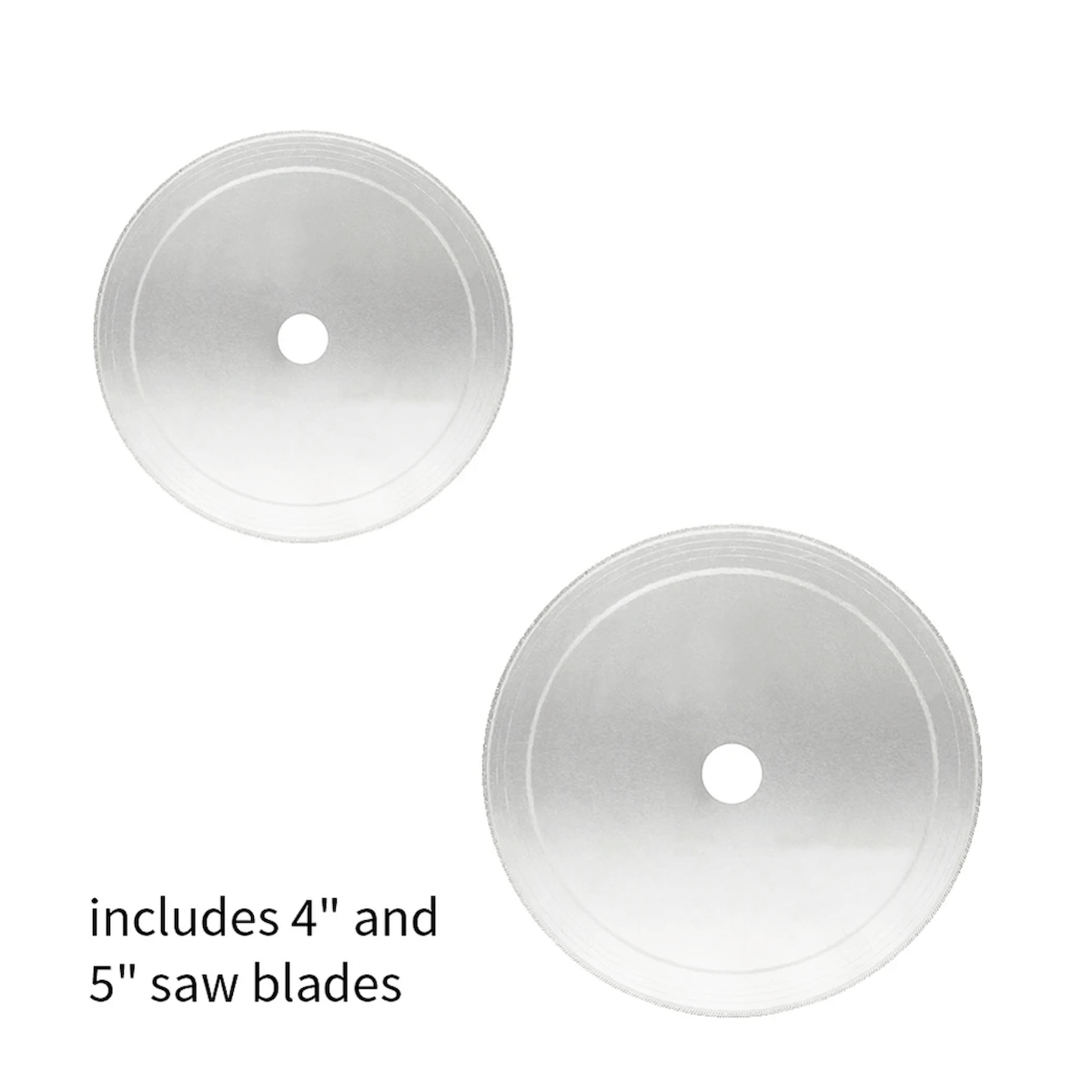

This saw includes 2 different size saw blades, one 4″ and one 5″ silver notched diamond saw blade. Two different size saw blades gives you 2 different blade height options to accommodate the height of your cutting material.

The Hi-Tech Diamond 4"/5" trim saw is manufactured with a 5/8" arbor and will accept any 4" or 5" saw blade that has a 5/8" arbor. The saw table has a generous work area, measuring 7-1/2" L X 4-3/4" W. The housing is made of unbreakable, cross-linked polyethylene that makes it rustproof and easy to clean.

Installed in each saw is a 1/4 hp, heavy-duty, direct drive permanent magnet motor with sealed ball bearings. The motor is variable speed and can deliver speeds from 800 to 3,400 rpm.

The coolant reservoir is built right into the base of the machine and can hold up to 8 oz of water. The removable saw table that covers the reservoir makes cleanup easy. The splash guard that comes with the machine keeps water off you and on your work piece, making it easier for you to work.

The included 4" blade allows you to cut a maximum height of 1". The included 5" saw blade allows you to cut a maximum height of 1-1/2". These saw blades are designed for cutting and trimming rock material such as turquoise, aqua, garnet, corundum, emerald and ruby.

  • 4" x .010" x .013" diamond saw blade included
  • 5" x .010" x .013" diamond saw blade included
  • Spray shield included
  • Allen wrench included
  • Complete written and visual instruction manual
  • 1-year manufacturer warranty
  • Machine dimensions: 13" L X 9-1/2" W X 7" H
  • Machine weight: 10 lb
  • Saw housing construction: rustproof, cross-linked polyethylene
  • Motor type: 1/4 hp variable speed direct drive motor with speeds ranging between 800 rpm - 3,400 rpm
  • Motor voltage: 115V
  • 4" saw blade height: 1"
  • 5" saw blade height: 1-1/2"
  • 4" saw blade depth: 3-1/4"
  • 5" saw blade depth: 4-1/2"
  • Made in the USA!
